Semi-automatic bag-in-box filling machine
Equipment Overview:
Bag-in-box filling machine is designed for quantitative filling of Bag in box by drawing lessons from French advanced technology. It adopts flowmeter metering mode, filling precision is high and the setting and adjustment of filling volume is very intuitive and convenient. Widely used in wine, edible oil, juice, additives, milk, syrup, alcoholic drinks, concentrated condiments and other materials bag in box filling and capping.
Main performance characteristics and use of materials:
Shell and frame are mainly made of high quality stainless steel, beautiful appearance; The pipe in contact with the material shall use 304# stainless steel and
Made of food-grade plastic tube, CIP cleaning can be realized, in line with food hygiene requirements.
In the same station to complete the tap drawing, vacuuming, quantitative filling, pressing and other processes, easy to operate.
Using flowmeter metering method, filling high precision, fast speed; Filling quantity setting and adjustment is convenient and quick.
This machine can vacuum the bag before filling, prolong the shelf life of the product reasonably, and can also be filled according to customer requirements
Rear nitrogen charging system (need to be uncalibrated).
Main technical parameters:
| Filling range | 1L-30L |
| Filling accuracy | ±0.5% |
| The filling speed | 200-220 bags/hour (at 3L) |
| 180-200 bag/hour (at 5L) | |
| Liquid pressure | ≤ 0.3-0.35Mpa |
| Work rate | ≤ 0.38 KW |
| The power supply voltage | AC220V/50Hz ±10% |
| Gas consumption | 0.1M3/Min |
| Pressure of work | 0.4-0.6Mpa |
| Packing size | 790*1040*1500mm |
| Packing weight | 114KG |

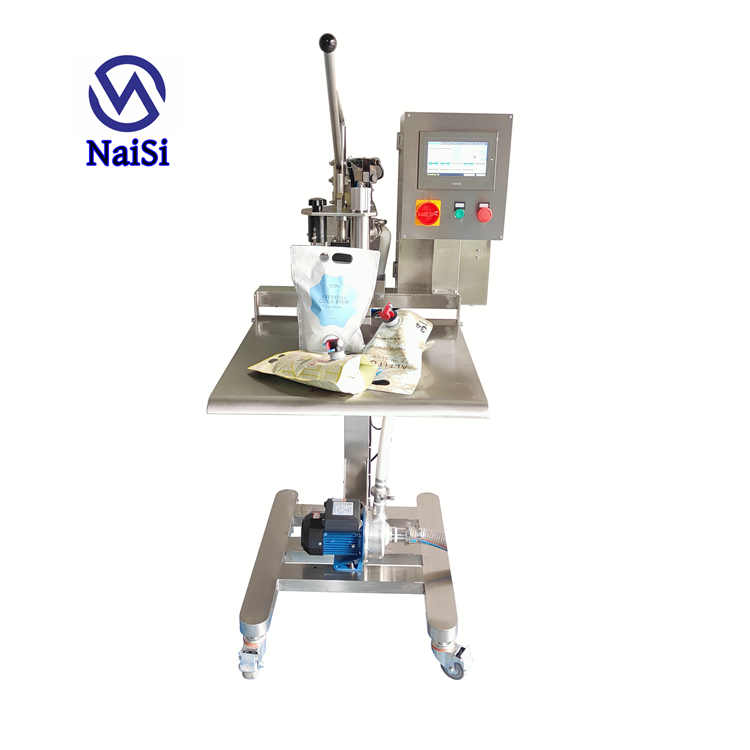

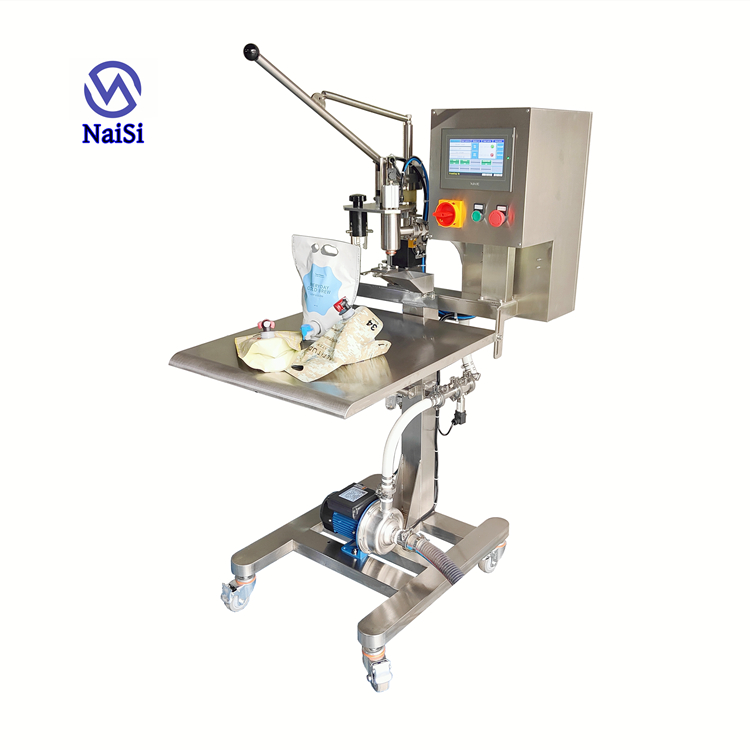

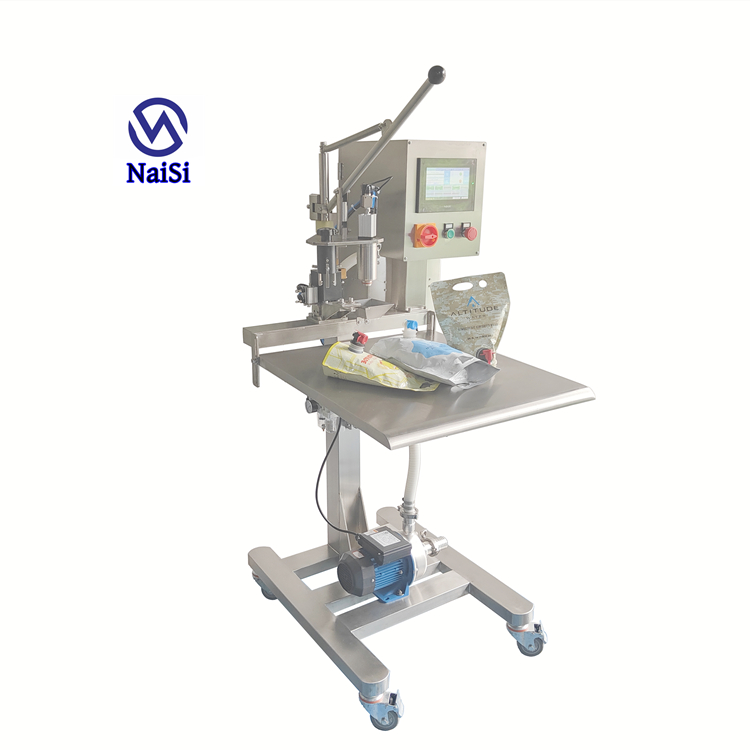

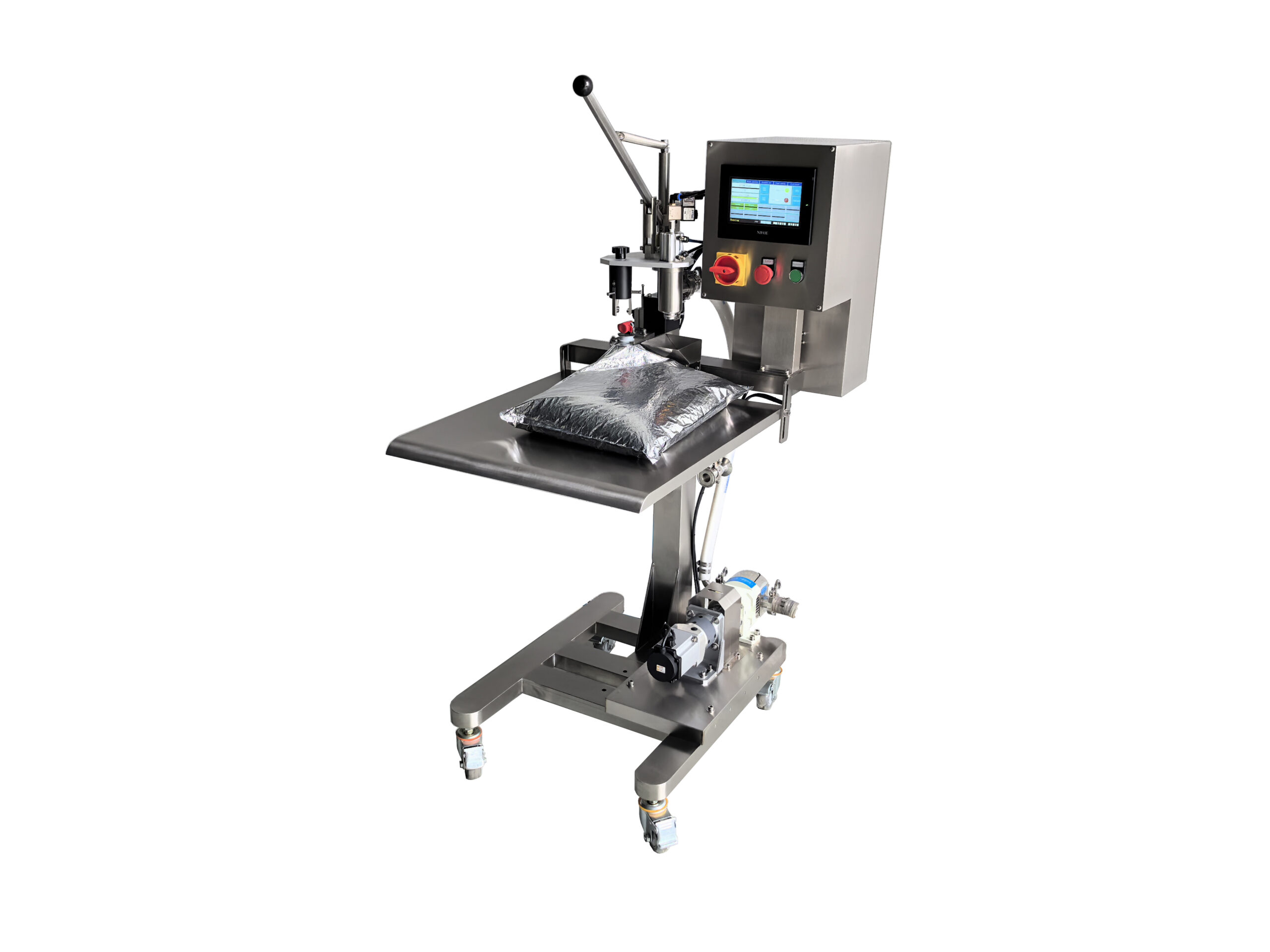

Product Image:
Application scope:
Our Services：
Packaging and shipping:
FAQ:
Q1: Are you trading company or manufacturer ?
A: We have own factory and manufacture, also do oversea trading by ourselves
Q2First time cooperation, how can I trust you?
A: We are verified company by Alibaba, and welcome to visit our factory.
Q3: How long is your delivery time?
A: Generally it is 10-15 working days if the goods are in stock. or it is 20-25 working days if the goods are not in stock.
Q4: How to ensure that I got the machine undamaged?
A:Packed in standard wooden case with well supported materials wrapped,check the packaging photos please.
Q5: What about your service or any question about products?
A:Test machine with your sample after finish machine.
Training how to instal the machine, traing how to use the machine before shippoing.
Engineers available to service machinery overseas
This machine enjoys 1 years warranty, any problem, you can send mail, will reply and help ASAP.
